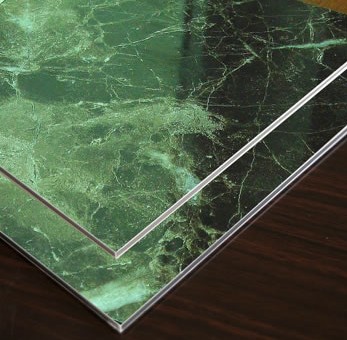

Wellstone(Marble,granite) aluminium composite panel

Introduction
The panel consists of two sheets of corrosion resistant aluminum permanently bonded to polyethylene core material. The front aluminum project Marble, granite design Coating. Because of its excellent face looking and other features, the panel is widely used as interior decoration and furniture materials.
Specification

Panel Thickness(mm)
2mm-8mm
Aluminium Skin Thickness(mm)
0.08mm-0.5mm
Width(mm)
1220mm-2000mm
Length(mm)
2440mm-8000mm

Feature
-Light weight, high strength, extreme rigidity, superior impact resistance,
-excellent surface flatness and smoothness ,
-heat insulation, sound insulation, fire-resistance,
-acid-resistance, alkali-resistance, good weatherproofing and non-resonance
-various uniform colors ,can be easily processed and fabricated, quickly installed,
-elegant and magnificent, good flexibility fits various designs,
-easily maintenance, simply cleaning
Applications:
※ Constructional exterior curtain walls;
※Decorative renovation for storey-added old buildings;
※ Indoors decoration for interior walls, ceilings, bathrooms, kitchens and balconies;
※ Advertisement board, display platforms and signboards;
※Wallboard and ceilings for tunnels;
※ Raw materials in industrial purpose;
※Materials used for vehicle and boat.
Surface properties

Paint Thickness(micron)
Anodize
Pencil Hardness
2H
Toughness Of Coating
2T
Temperature Resistance
-500C+900C
Impact Strength(kg/cm2)
50
Boiling Water Resistance
boiling for 2 hours,No change
Acid Resistance
Immerse surface in 2% HC1 for 24hours,No change
Alkali Resistance
Immerse surface in 2% NAOH for 24hours,No change
Oil Resistance
Immerse surface in 20# engine oil for 24hours,No change
Solvent Resistance
Cleaned 100 times with Dimethylbenzene,No change
Cleaning Resistance
>1000 times no change
Thermal Expansion
2.4mm/m @1000C Temp difference
Peel Strength
Average 131N.mm/mm
Bending Strength
>100MPA
Bending Elastic Modules
>2.0*104MPA
Heat Distortion Temperature
>950C
